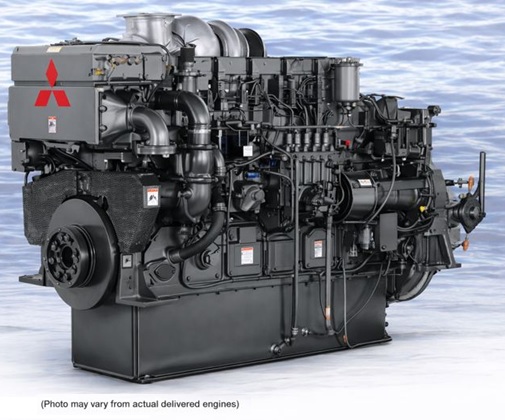

MITSUBISHI MARINE ENGINE S6R2-MPTK
Mechanical engine (IMO1 emission compliant) [No complicated electronics]
• Engine International Air Pollution Prevention (EIAPP) certificates is available.
[IMO-2 is also available]
For Fishing boats, Passenger Ferry, LCT, Tugboats
• High torque with good maneuverability
Easy Maintenance
• Cylinder heads are individually divided per cylinder.
• Large inspection covers is available in crankcase and oilpan.
Compact Design
• Compactness give advantages for installation and running cost.
High Reliability & Fuel Efficient
• Mitsubishi original injection pump and turbo-charger bring best combustion and fuel efficienc
S6R2-MPTK Engine Specifications
S6R2-MPTK Engine Specifications
| Type | 4 stroke cycle, water cooled, direct injection type diesel engine |
|---|---|
| Cooling system | Thermostat controlled fresh water cooling by fresh water pump, heat exchanger and sea water pump |
| Combustion type | Direct injection |
| Cylinder numbers | In-line 6 cylinders |
| Piston bore × stroke | 170mm × 220mm |
| Total displacement | 29.96 liters |
| Flywheel | 18 inch |
| Flywheel housing | No.0 |
| Continuous rating output (C-Rating) | 552kW (750PS) / 1450RPM |
| Piston speed | 10.63 m/s |
| Fuel oil | ISO 8127DMX (Cetane number 45 or more) |
| Engine starting | DC24V 6.0kW earth float type |
| Lubricating system | Forced lubrication by gear pump |
| Lubricating oil | API service grade CF |
| Aspiration | Turbocharged with intercooler |
| Governor | Hydraulic type, all speed control. Steady-state speed regulation at rated speed within 10% |
| Rotation direction | Counter-clockwise as viewed from flywheel side |
| Dimensions (L × W × H) | 2207mm × 1156mm × 1695mm |
| Dry weight | Approx. 3000 kg |
